SHOT 2020 | Kinetic Development Group

M-Lok Handguards for HK417 and HK416

After the success of the MREX and the MREX MKII for the FN SCAR KDG is now producing accessories for the HK416 (MR556) and the HK417 (MR762).

HK 762 M-Lok Rail System 14″

The KDG HK 762 M-Lok rail is 14” overall in length. It features a continuous monolithic picatinny rail at the 12 o’clock position, and M-Lok mounting slots at the 3, 6 and 9 o’clock positions. The system also uniquely offers a forward mounting M-Lok slot at each of the 2, 4, 8, and 10 o’clock positions for offset accessories like lights and lasers. The HK 762 M-Lok rail also includes two quick-detach sling attachment points on either side of the rail system for use with modern two-point adjustable slings. The KDG HK 762 rail will be available in black and brown type 3 hard coat anodizing.

The system is optimized for all standard M-Lok mounted accessories, or could be used in combination with the KDG Kinect M-Lok quick attach/detach accessory mounts. The KDG HK 762 M-Lok rail is compatible with Heckler and Koch 762 variants including: 417, MR 762, G28, and CSASS.

Available in Black and Brown, MSRP $499.

SHOT Show 2020 Kinetic Development Group-6SHOT Show 2020 Kinetic Development GroupSHOT Show 2020 Kinetic Development Group-4

HK 556 M-Lok Rail System 10″ and 13.75″

The KDG HK 556s M-Lok rails come in two lengths: 10” and 13.75”. They feature a continuous monolithic picatinny rail at the 12 o’clock position, and M-Lok mounting slots at the 3, 6 and 9 o’clock positions.   The systems also uniquely offers a forward mounting M-Lok slot at each of the 2, 4, 8, and 10 o’clock positions for offset accessories like lights and lasers.  They also include two quick-detach sling attachment points on either side of the rail system for use with modern two-point adjustable slings. The KDG HK 556 rails will be available in black and brown type 3 hard coat anodizing.

The systems are optimized for all standard M-Lok mounted accessories, or could be used in combination with the KDG Kinect M-Lok quick attach/detach accessory mounts.   The KDG HK 556 M-Lok rail is compatible with Heckler and Koch 416 variants including: 416, MR 556, and M27.

Available in Black and Brown, MSRP $379 (10″) and $399 (13.75″).

SHOT Show 2020 Kinetic Development Group-3SHOT Show 2020 Kinetic Development Group-2

Optics Hub

The KDG Optics Hub is a very effective solution for seamless Day/Night detection, identification and distance estimation.

SHOT Show 2020 Kinetic Development Group-8

SCAR MREX MKII

SHOT Show 2020 Kinetic Development Group-5

SHOT Show 2018 | Kinetic Development Group

If we would have to synthesize the product development of KDG (or Kinetic Development Group) it would be, in our opinion, ingenious problem solving through precise engineering. This is what we think of their products and solutions.

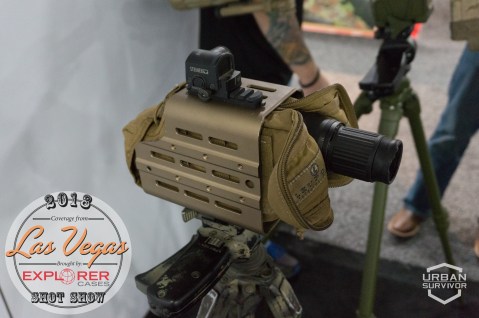

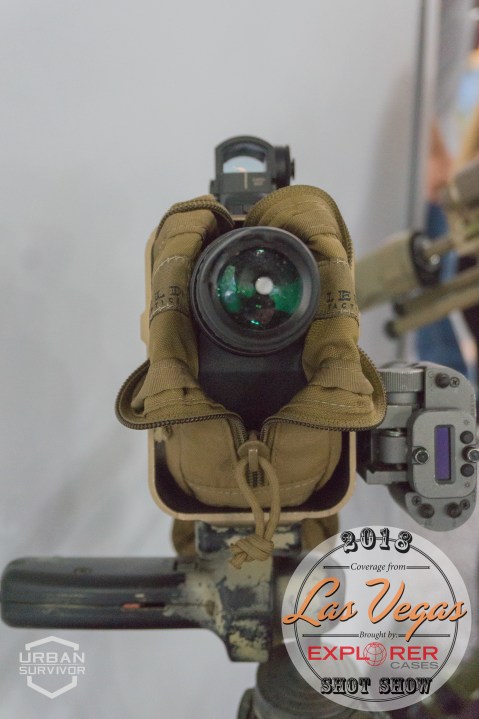

KDG Optics Hub KDG Kinetic Development Group Optics Hub SHOT Show 2018 (1)KDG Kinetic Development Group Optics Hub SHOT Show 2018 (2)

Read More…

Kinetic Development Group Sidelok Modular Optic Mount

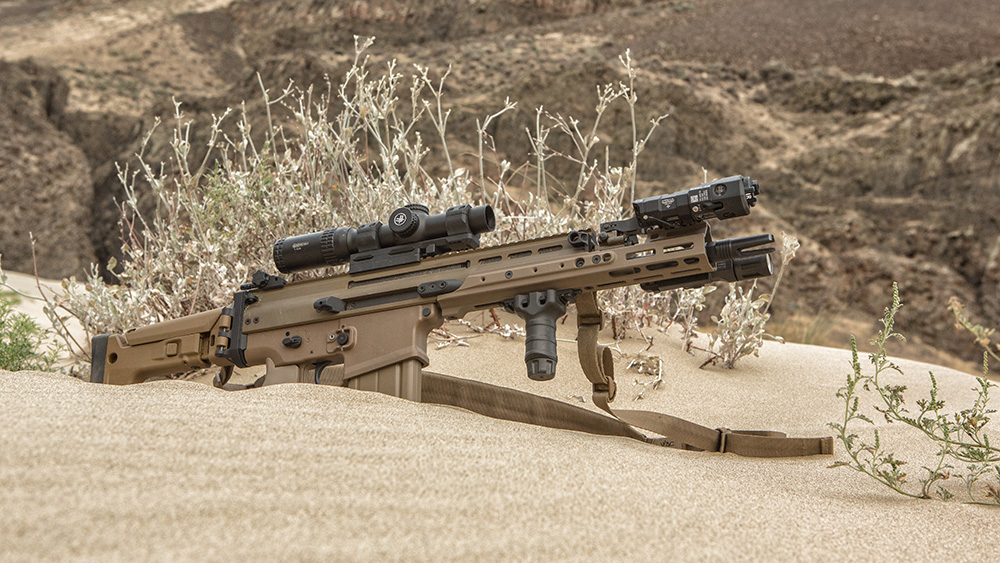

smom-3os-small Kinetic Development Group has once again brought a much needed solution to the market through the Sidelok line. This latest addition allows the user to quickly change optics throughout various weapon platforms with ease and without losing accuracy.

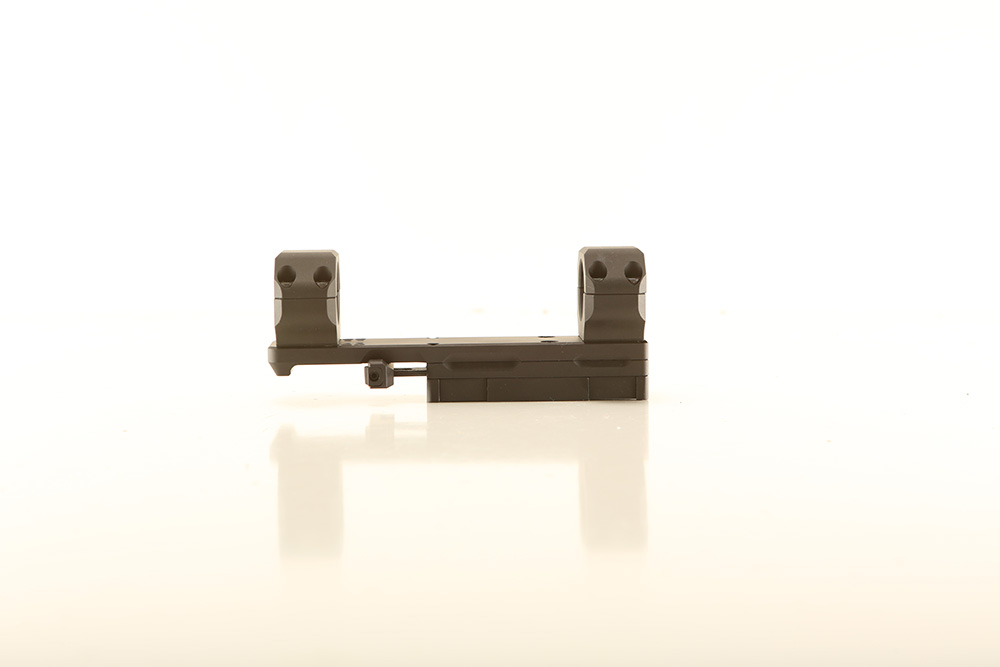

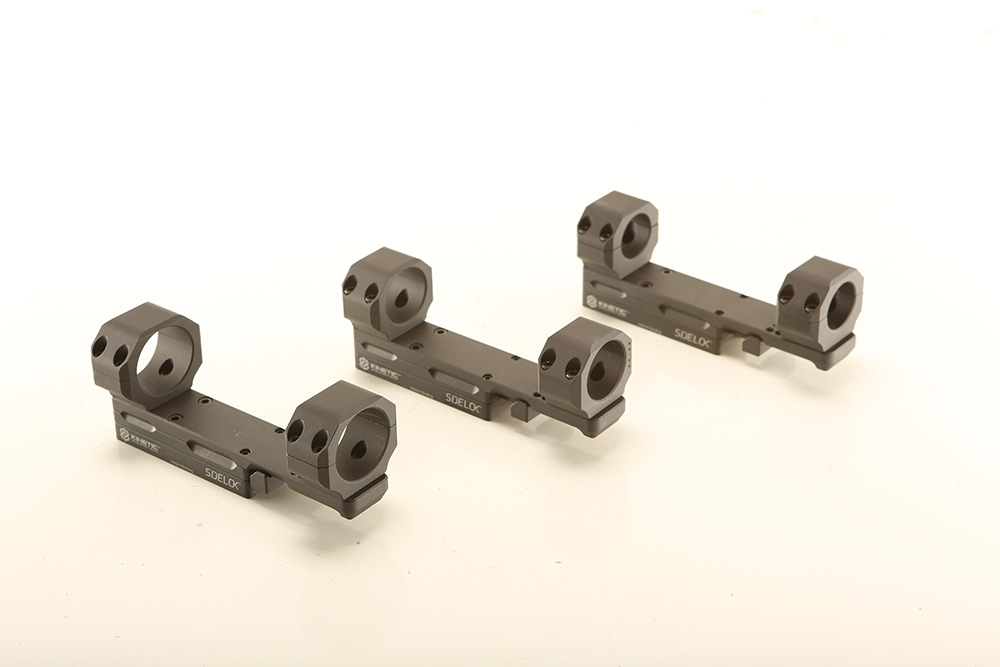

 The new KDG Modular Optic Mount is based off the proven Sidelok family of quick detach optic mounts, and features the same user-friendly, toolless design. KDG set out to design a Sidelok mount for all common, tube-style optics that will offer more user-configurable options than what is currently available from competing QD mounts. The Modular Optic Mount currently comes in three configurations, with ring sizes for 1”, 30mm and 34mm tubes.

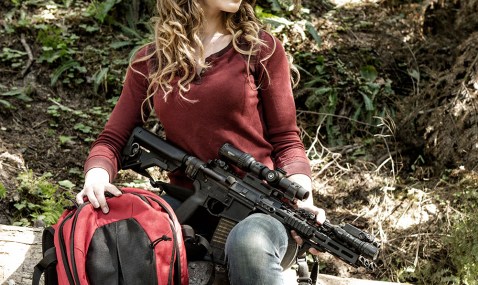

smom-2os-small The mount is offered with a user removable cantilever bar, in which the rings securely mount. This bar runs parallel to the weapon’s bore, and is ideal for all semi and fully automatic carbines, rifles and DM style firearms. KDG plans to release a separate 20 MOA bar in the future, for those that might require the added elevation for particular optic or application.

 The matched front and rear rings are CNC machined, and wire EDM cut to be as precisely concentric as possible. The upper and lower ring remain matched for the duration of its production, and feature witness marks for assembly in the form of recessed dots. This allows the user to match the proper ring to its base, and ensure the mount is as truly aligned as possible. The rings themselves can be adjusted forward or back to the user’s preference, to avoid interference with large front objective bells, turret adjustment knobs, and rear magnification adjustment collars. The rings themselves bolt into a track system to facilitate this adjustment. The same track system allows the user to purchase and install separate rings in the future, should they decide to change to an optic with a larger or smaller diameter tube. This feature will save the shooter or organization money, as the majority of cost is in the base of the unit.

smom-1os-small The SMOM is available for three different scope diameters: 34mm, 30mm, 1″.

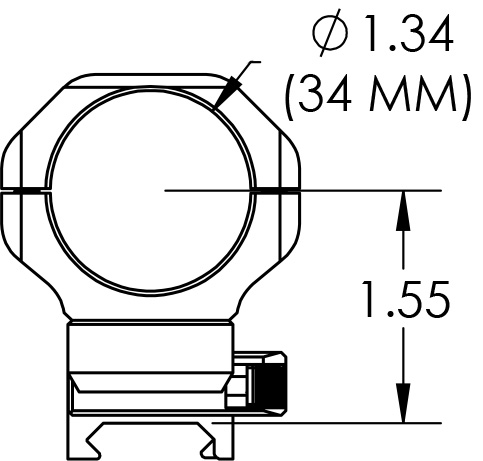

34mm-lineart-black-1 30mm-lineart-black-2 1-lineart-black-1 For more info please visit: kineticdg.com/product-category/sidelok/

Images and details from Kinetic Development Group

Kinetic Development Group | SCAR Adaptable Stock

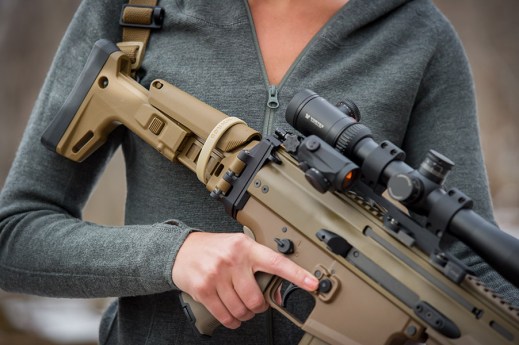

The new Kinetic SAS kit takes the amazing Magpul designed Masada (ACR-E) stock system and allow for direct use with your SCAR platform rifle. Stock ships fully assembled with SCAR adapter for drop in use.

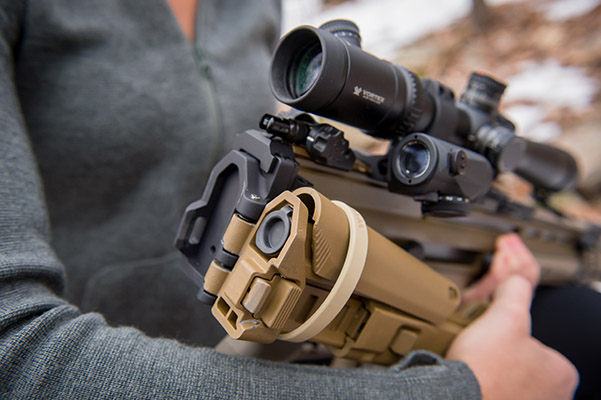

KDG-ACRdemo_09SMALL Just a few months ago, Kinetic Development Group launched its company with the promise to bring solutions to the small arms market existing with high quality firearms. They started with the FN SCAR as many SCARs are deployed with our Special Operations Forces. They also recognize the 16S and 17S are increasingly popular with American shooters and law enforcement.

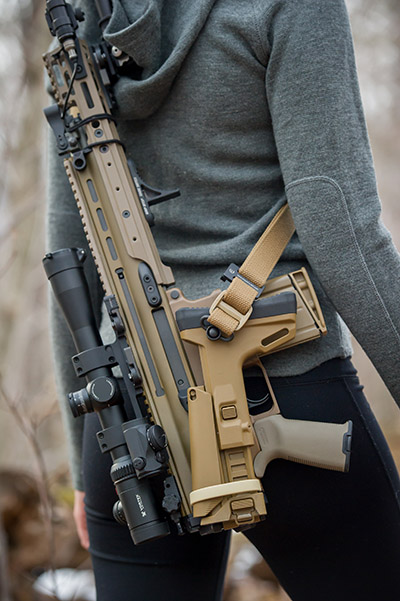

KDG-ACR SCAR SAS

Their first products, the MREX (modular rail extensions) for the front end of the SCAR has been very popular. The KDG front and rear sling points have also brought the SCAR into the year 2015 as far as QD sling solutions go. Well, they have just addressed another common complaint about SCAR. Some refer to it as the SCAR’s “UGG Boot” like stock system.

KDG SAS kits come standard with 7 positions of length adjustment, cheek weld height adjustment, an AMBI QD sling attachment point, a weatherproof battery compartment, and a side-folding feature. Like the factory stock, the weapon can be fired with the stock folded. KDG also added an optional set-screw to allow users the option to eliminate any play between the stock and receiver.

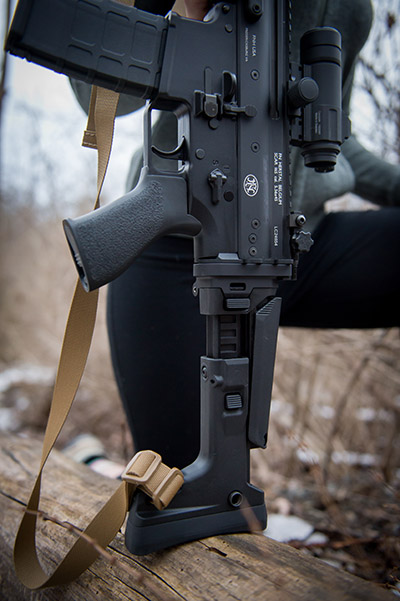

KDG-ACRdemo_20SMALL

The stock and adapter comes fully assembled from KDG. There are no tools required to install on your SCAR! The whole system retails for $299.00 and can be purchased at www.kineticdg.com or a dealer listed near you found on their website.www.kinetidg.com/dealers
